Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation

Name: Copper Conductor Medium Voltage MV Power Cable 8715kV XLPE Insulation
Brand: Zhongdong
Price: 1 USD

Brand Name : Zhongdong

Model Number : NYBY NAYBY

Certification : IEC,CE,ISO,TUV

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : ,L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 7-30 days based on different qty

Packaging Details : Rolls, Wooden Drums, Steel Drums, Reels or customized

Armored : Steel Wire

Sheath Material : PVC

Insulation : XLPE

Rated Voltage : 6/10kV

Conductor : Copper

No of Core : 1,3

Contact Now

Copper Conductor Medium Voltage Cable 8.7/15kV Cu/XLPE/PVC/SWA

Construction

Conductor: Circular compacted stranded Copper or aluminium
Conductor screen: Extruded semi-conductive compound
Insulation: XLPE
Insulation screen: Extruded semi-conductive compound
Metallic screen: Copper Wire
Binder tape: non-hygroscopic material
Inner covering(bedding): PVC
Metallic armor: Galvanized steel tape

Application

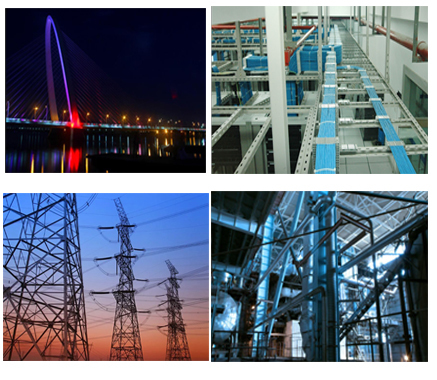

Medium-voltage cables (typically rated between 1 kV and 35 kV) are extensively used in power distribution networks to deliver electricity from substations to industrial, commercial, and residential areas. They are commonly employed in underground and overhead systems, industrial plants, renewable energy installations (e.g., solar farms, wind turbines), and infrastructure projects like airports, hospitals, and transportation hubs. These cables also serve in mining operations, oil and gas facilities, and urban grids due to their durability, high current-carrying capacity, and resistance to environmental stressors. Insulated with materials like XLPE, they ensure efficient energy transfer, safety in harsh conditions, and reliability in medium-voltage application

Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation

Specification

YJV62 YJV22-3.6/6kV Cable Structure Parameters

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km	Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
1×25	6.0±0.1	12.2	20.5	751	3×25	6.0±0.1	12.2	39.1	2415
1×35	6.6±0.2	12.8	21.1	853	3×35	6.6±0.2	12.8	40.8	2775
1×50	7.6±0.2	13.8	22.3	1006	3×50	7.6±0.2	13.8	43.1	3250
1×70	9.2±0.2	15.4	23.9	1248	3×70	9.2±0.2	15.4	46.9	4063
1×95	10.9±0.2	17.1	25.8	1551	3×95	10.9±0.2	17.1	50.7	5015
1×120	12.2±0.2	18.4	27.1	1813	3×120	12.2±0.2	18.4	54.1	5919
1×150	13.6±0.2	19.8	28.6	2118	3×150	13.6±0.2	19.8	57.4	6902
1×185	15.2±0.2	21.4	30.2	2499	3×185	15.2±0.2	21.4	61.1	8136
1×240	17.4±0.2	23.8	32.8	3103	3×240	17.4±0.2	23.8	66.8	10099
1×300	19.5±0.2	26.3	36.9	4116	3×300	19.5±0.2	26.3	72.7	12239
1×400	22.0±0.2	29.2	40.0	5008	3×400	22.0±0.2	29.2	81.0	15868
1×500	24.8±0.2	33.2	44.4	6222	3×500	24.8±0.2	33.2	90.1	19700
1×630	28.2±0.2	36.6	48.1	7695	3×630	28.2±0.2	36.6	98.3	24392
1×800	34.0±0.2	42.4	54.1	9734
