450V 750V Flexible Rubber Cable 3 Or 4 Cores 2.5mm2 50mm2 95mm2

Brand Name : Zhongdong

Model Number : H07RN-F

Certification : VDE,CCC,ISO,TUV

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10work days

Packaging Details : Wooden Drum

Application : Industrial

Conductor Material : Copper

Jacket : PCP

Voltage : 600v

Color : Bleck, Red, Yellow, Green

Contact Now

450/750V Flexible Rubber Cable 3 or 4 Cores 2.5mm2 50mm2 95mm2

Application

450/750V Flexible Rubber Cables are suitable for applications such as handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. The tough rubber sheath also makes this cable suitable for use in drainage and water treatment, cold or refrigerated environments, and severe industrial environments.

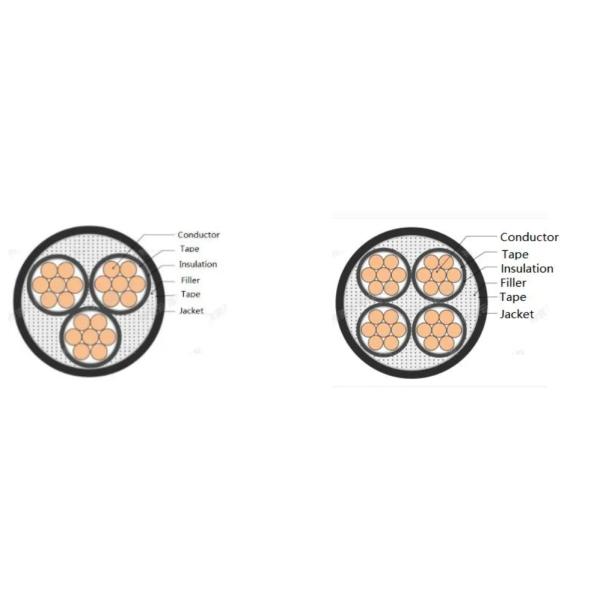

Construction

450V 750V Flexible Rubber Cable 3 Or 4 Cores 2.5mm2 50mm2 95mm2

Characteristics

The H07RN-F cable has a voltage rating of 450/750V. As a low voltage cable, sizing can be determined with help from our Cable Calculator when system design and installation parameters are considered.

Specification

Size(mm2)

Conductor structure
(MM)

Outer diameter of conductor
(MM)

Insulation thickness
(MM)

Sheath thickness
(MM)

Reference outside diameter
(MM)

Reference weight
(KG)

3 x 1.5

30/0.25

1.56

0.8

1.6

11.0

139.8

3 x 50

19 x 20/0.40

10.00

1.6

4.5

39.4

2603.7

3 x 120+1 x 35

19 x 30/0.50
7 x 37/0.40

15.6
8.4

1.8
1.4

5.6

54.9

5650.4

4 x 10

77/0.40

4.56

1.2

3.4

25.7

951.9

4 x 150

19 x 38/0.50

17.3

2.0

6.5

66.6

8527.6
