600V ABC Aerial Bundled Cable Prefabricated 4X35 XLPE Insulation Standard Cable

Brand Name : Zhongdong

Model Number : ABC

Certification : CCC,ISO,TUV,CE

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : ,L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 7-30 days based on different qty

Packaging Details : Wooden Drum/ Steel Drum

Application : overhead distribution line

Cores Nos : 1,2,3,4 more multicore

Rated Voltage : 0.6/1 kV

Installation Degree : -20℃-90℃

Neutral Messengers : AAC, AAAC or ACSR

Insulation : XLPE/PE/PVC

Contact Now

600V ABC Aerial Bundled Cable Prefabricated 4X35 XLPE Insulation Standard Cable

Application:

  1. Power Distribution: Ideal for residential, commercial, and industrial applications where reliable power distribution is needed in overhead electrical systems.
  2. Rural Electrification Projects: Widely used in rural electrification projects to bring power to remote areas, ensuring reliable electricity supply.
  3. Medium Voltage Networks: Perfect for medium voltage distribution in urban or rural power networks.

600V ABC Aerial Bundled Cable Prefabricated 4X35 XLPE Insulation Standard Cable600V ABC Aerial Bundled Cable Prefabricated 4X35 XLPE Insulation Standard Cable600V ABC Aerial Bundled Cable Prefabricated 4X35 XLPE Insulation Standard Cable

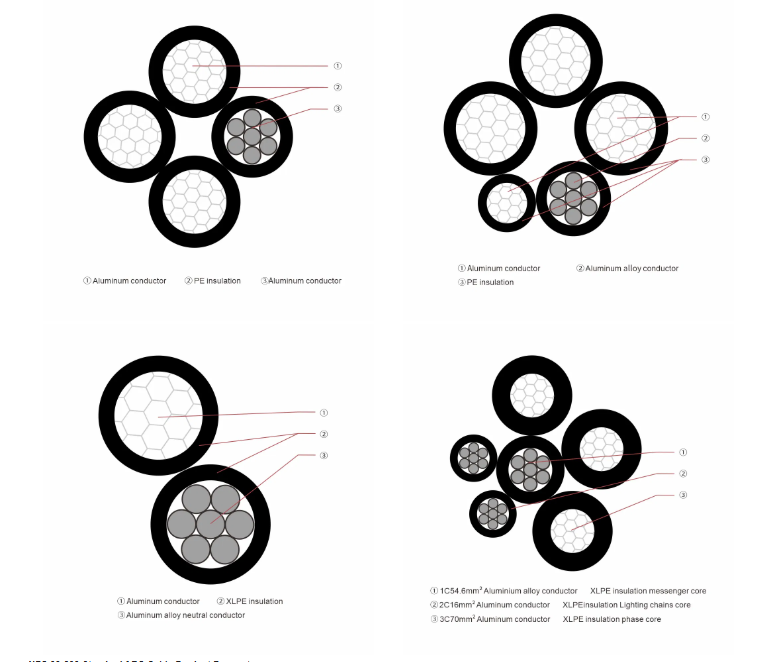

Construction

  1. Conductor: Aluminum (lightweight, cost-effective).

  2. Insulation: XLPE (excellent thermal resistance, withstands temperatures up to 90°C).

  3. Sheath: Typically low-smoke halogen-free (LSHF) compound for reduced toxicity and smoke emission during fires.

600V ABC Aerial Bundled Cable Prefabricated 4X35 XLPE Insulation Standard Cable

Specifications

NFC 33-209 Standard ABC Cable Product Parameters:
Number of Cores x Nominal Cross Section
Overal Diameter
Weight
Maximum Conductor Resistance
Minimum Breaking Load
Current Rating
No.x mm^2
mm
Kg/Km
Ω/Km
KN
A
2x10 RM
12.8
93
3.08
1.5
38
4x10 RM
15.4
183
3.08
1.5
38
2x16 RM
14.8
129
1.91
2.3
72
2x16 RN + 2x1.5 RE
14.8
176
1.910/12.100
2.3
72
4x16 RM
17.8
257
1.91
2.3
72
4x16 RN + 2x1.5 RE
17.8
304
1.910/12.100
2.3
72
2x25 RM
18
202
1.2
3.8
107
2x25 RM + 2x1.5 RE
18
249
1.200/12.100
3.8
107
4x25 RM
21.7
404
1.2
3.8
107
4x25 RM + 2x1.5 RE
21.7
451
1.200/12.100
3.8
107
2x35 RM
20.8
269
0.868
5.2
132
2x35 RM + 2x1.5 RE
20.8
316
0.868/12.100
5.2
132
4x35 RM
25.1
539
0.868
5.2
132
4x35 RM + 2x1.5 RE
25.1
586
0.868/12.100
5.2
132
2x50 RM
23.4
352
0.641
7.6
165
2x50 RM + 2x1.5 RE
23.4
399
0.641/12.100
7.6
165
1x54.6 RM + 3x25 RM
21.7
507
0.630/1.200
3.8
107
1x54.6 RM + 3x25 RM + 1x16 RM
24.3
573
0.630/1.200/1.910
3.8/2.3
107/72
1x54.6 RM + 3x25 RM + 2x16 RM
29.7
639
0.630/1.200/1.910
3.8/2.3
107/72
1x54.6 RM + 3x25 RM + 3x16 RM
31.1
705
0.630/1.200/1.910
3.8/2.3
107/72
1x54.6 RM + 3x35 RM
25.1
615
0.630/0.868
5.2
132
1x54.6 RM + 3x35 RM + 1x16 RM
28.1
680
0.630/0.868/1.910
5.2/2.3
132/72
1x54.6 RM + 3x35 RM + 2x16 RM
34.3
748
0.630/0.868/1.910
5.2/2.3
132/72
1x54.6 RM + 3x35 RM + 3x16 RM
35.9
814
0.630/0.868/1.910
5.2/2.3
132/72
1x54.6 RM + 3x35 RM + 1x25 RM
28.1
714
0.630/0.868/1.200
5.2/3.8
132/107
1x54.6 RM + 3x50 RM
28.2
741
0.630/0.641
7.6
165
1x54.6 RM + 3x50 RM + 1x16 RM
31.6
806
0.630/0.641/1.910
7.6/2.3
165/72
1x54.6 RM + 3x50 RM + 2x16 RM
38.6
875
0.630/0.641/1.910
7.6/2.3
165/72
1x54.6 RM + 3x50 RM + 3x16 RM
40.4
940
0.630/0.641/1.910
7.6/2.3
165/72
1x54.6 RM + 3x50 RM + 1x25 RM
31.6
841
0.630/0.641/1.200
7.6/3.8
165/107
1x54.6 RM + 3x70 RM
33
950
0.630/0.443
10.2
205
1x54.6 RM + 3x70 RM + 1x16 RM
37
1014
0.630/0.443/1.910
10.2/2.3
205/72
1x54.6 RM + 3x70 RM + 2x16 RM
45.2
1083
0.630/0.443/1.910
10.2/2.3
205/72
1x54.6 RM + 3x70 RM + 3x16 RM
47.3
1148
0.630/0.443/1.910
10.2/2.3
205/72
1x54.6 RM + 3x70 RM + 1x25 RM
37
1048
0.630/0.443/1.200
10.2/3.8
205/107
1x54.6 RM + 3x70 RM + 2x25 RM
45.2
1150
0.630/0.443/1.200
10.2/3.8
205/107
1x54.6 RM + 3x70 RM + 3x25 RM
47.3
1250
0.630/0.443/1.200
10.2/3.8
205/107
1x54.6 RM + 3x95 RM
37.4
1176
0.630/0.320
13.5
240
1x54.6 RM + 3x95 RM + 1x16 RM
41.9
1243
0.630/0.320/1.910
13.5/2.3
240/72
