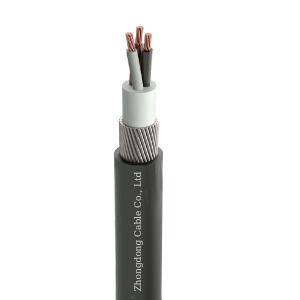

Multi Core LSZH Low Smoke Zero Halogen Cable XLPE Steel Wire Armoured

Brand Name : Zhongdong

Model Number : WDZ-YJV23

Certification : IEC,ISO

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 100KM/WEEK

Delivery Time : 10Days

Packaging Details : Steel wooden drum

Conductor Material : Copper

Insulation Material : XLPE

Jacket : PVC or PE

core : 1 core, 2 core,3 core,4 core,5 core

high temperature : 90 °C

conductor material : copper or Aluminum

Contact Now

Multi Core Low Smoke Zero Halogen Cable XLPE Steel Wire Armoured

Application

For fixed installation of the transmission and distribution systems, tunnels and pipelines and other occasions .For situation not suppose to bear the external mechanical force.

Constructions

Conductor: Plain circular stranded copper conductor, conform to IEC 60228 class 2

Insulation: XLPE

Amour: Steel Wire armour

Core Conductor :annealed copper (stranded core)

Popular sizes: 2~5 core x1.5~630mm²
Jacket: LSZH
Voltage suitable: 0.6/1kV
Fire performance: IEC 60332-1

Specification

0.6/1kV 4 Core Copper Conductor Steel Wire Armoured Cable Parameter
Nominal cross-sectional area
Insulation thickness
Sheath thickness
Approx.overall
dimaeter of cable
Approx. weight
of cable(kg/km)
mm2
mm
mm
mm
4x1.5
0.7
1.8
15.9
423.9
4x2.5
0.7
1.8
17.8
612.8
4x4
0.7
1.8
19.3
734.4
4x6
0.7
1.8
20.7
861.4
4x10
0.7
1.8
23.3
1108
4x16
0.7
1.8
26.6
1593
4x25
0.9
1.8
29.8
2092.5
4x35
0.9
1.9
32.5
2589.1
4x50
1
2.1
36.9
3461.8
4x70
1.1
2.2
41.8
4526.4
4x95
1.1
2.3
46.5
5808.6
4x120
1.2
2.5
52.3
7472.2
4x150
1.4
2.7
57.3
8958.3
4x185
1.6
2.8
62.6
10801.8
4x240
1.7
3.1
70.1
13436.4
4x300
1.8
3.3
75.9
16217.2
4x400
2
3.6
86.3
21548.9
